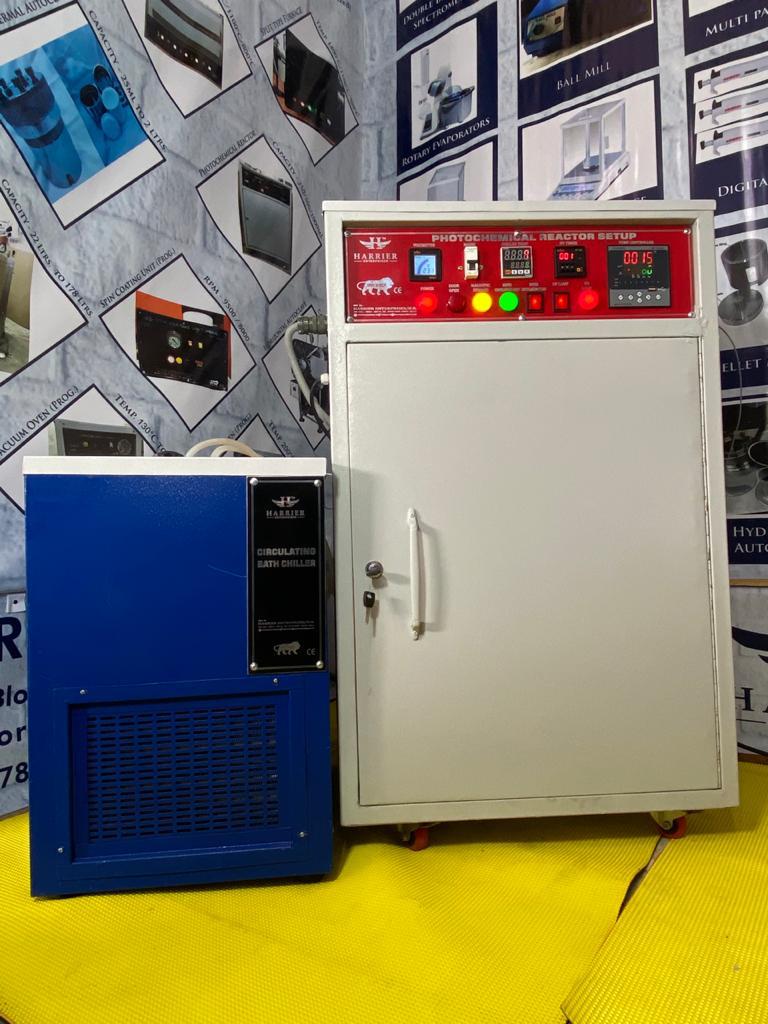

Photocatalytic Reactor: Make: HE (NSIC Regd, ISO 9001 – 2015/14001-2015/13485-2016/FDA/GMP/CE Certified) Detailed Descriptions Description Photocatalytic Reactor Photo catalytic Reactor with triple jacketed with 3 port to insert catalyst, Sample draw and one for additional use like temperature sensor etc. Outer jacketed made of borosilicate glass extra cooling jacket for water circulator with two port inlet and outlet port made of quartz inner jacketed quartz immersion well Capacity – 2 Ltr, also we have different capacity from 100 ml to 5000 ml Make: - Harrier Enterprises Light Source UV Lamp specially designed for photocatalytic Reactor Different wattege of lamp available such as,250,450 watts, you can chose any one or all, the price mentioned is for one lamp Power Supply for UV Lamp source for 250,450 watts Electronic Ballast controller Included DigitalTemperature controller temperature sensor and safety device. Power supply will be used separate for each lamp, you need to buy Lamp and power supply together. But if you need to change lamp if not working then you can buy only lamp not powersupply. Automatic on/off UV Lamp Timer (Max capacity of timer is 9999 minutes) Inbuilt 2 Electrical Connection (16 Amps ports) Silicon. Safety LED s indication Xenon Lamp 300 watt and Power Supply UV Protected Cabinet Outer Metal Shell (Safety Cabinet) • Safety Cabinet • Digital temperature display (@ four sample point which is Reaction temperature, Cabinet chamber temperature, Water inlet and outlet temperature) • Digital Volt meter Clamp based in-build reactor Holding Stand Cooling Exhaust Fan • LED panel Lamp for cabinet (Automatic Switching) Automatic UV light or Rays protection system • UV light protected Goggles Automatic on/off UV Lamp Timer (Max capacity of timer is 9999 minutes) • Inbuilt 2 Electrical Connection (16 Amps ports) Silicon tubing (ID 10mm, OD 14mm) for water inlet and outlet. • Safety LED’s indication system Hydraulic Fittings for Water Circulation (Inlet & Outlet) Magnetic Stirrer Magnetic Stirrer Specialy designed for Photo-catalytic Reactor Digital Speed Display, Digital Timer provided Speed variable upto 1600 RPM Chilling Circulation Unit Chiller Circulator Temperature Range : -100C to Ambient Temperature stability : + 0.50C Bath Volume : 12 Litter Refrigerant : CFC Free, R134 A Inner Body : S.S. 304 Outer Body Temperature Controller tubing for water inlet and outlet Hydraulic Fittings for Water Circulation : : : : Made of Mild Steel duly powder coated PID (ID 10mm, OD 14mm) (Inlet & Outlet)

Three-zone split tube furnaces are typically used for applications that require precise temperature control or for applications where the use of different atmospheres is necessary. Some common applications for three-zone split tube furnaces include: Three-zone split tube furnaces are available in a variety of sizes and temperature ranges. The size of the furnace will determine how many samples can be heated at once, while the temperature range will determine the types of materials that can be heated in the furnace. Application: 1700°C Three Zone High Temp Tube Furnace Mainly Provides High Temperature Heat Treatment Environment for Industrial, Research Institutes, Factories And Other Industrial Laboratories, And Is Applied To New Materials Such As Metal Materials, Ceramic Materials, Nano Materials, And Semiconductor Materials. Three-zone split tube furnaces are available in a variety of sizes and temperature ranges. The size of the furnace will determine how many samples can be heated at once, while the temperature range will determine the types of materials that can be heated in the furnace. Product Specification Type Three Zone Fixed Type Max Temperature Zone 1 1700℃ Max Temperature Zone 2 1700℃ Max Temperature Zone 3 1700℃ Continue Operating Temp. Zone 1 1600℃ Continue Operating Temp. Zone 2 1600℃ Continue Operating Temp. Zone 3 1600℃ Heating Element High Quality Molybdenum Discilicide (MoSi2) heater Insulation ➢First layer: 1800℃ ceramic fiber board& Zirconia Fiber Blanket. ➢ Second layer: 1700℃ ceramic fiber board & Zirconia Fiber Blanket. ➢ Third Layer: High Quality Ceramic Fiber Zirconia Grade Thermal Insulation Material To Ensure A Good Uniformity. Temperature Accuracy ±1℃ Thermocouple B type (Pt-Rh to Pt-Rh) with 99.7% purity Alumina tube Temperature Controller ➢ PID automatic control via SCR power control with phase angle fired, current limiting resistor. ➢ 1 programmable x 16 segments for precise control of heating rate, cooling rate and dwell time. ➢ Built in PID Auto-Tune function with overheating & broken thermocouple broken protection for this Muffle Furnace 1800 type. ➢ The Heating Rate Is Fast, From Room Temperature To 1600 Degrees, Generally Takes 120 Minutes. Electronic Component Autonics / Schneider / L&T Electronics Brands Heating Rate ≤ 10℃/Min (Suggest 8℃/Min For Longer Life Using of Furnace) Safety Protection Overheat And Thermocouple-Break Alarm Certification NSIC REGD, MSME REGD, ISO 9001 – 2015/14001-2015/13485-2016/FDA/GMP/CE CERTIFIED Furnace Shell High Quality GI Sheet With PP Powder Coated Accessories One Pair of High Temperature Furnace Gloves One No. Furnace Hook and Operational Manual Power Supply 415 V, Three Phase AC SUPPLY Warranty ➢ One-year limited warranty for this Tube Furnace 1700 type with lifetime support. (Consumable parts such as heating elements and Sensor, crucibles are not covered by the warranty, please order the replacement at related products) ➢ ATTENTION: Any damages caused by the use of corrosive and acidic gases are not under the coverage of One Year Limited Warranty. Using Attentions ➢ The cooling rate of this High Temp Tube Furnace1700 type shall also not exceed 10℃/min. ➢ Toxic or explosive gases are not recommended for use with this High Temp Tube Furnace 1700 Type without necessary safety controls and supervision. ➢ Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence Product Specification Model HE-STF-(1700/1400p/1200P) Maximum Temp 1700/1400/1200°C Working Temp 1600/1350/1150°C Temp Accuracy 1°C Heating Elements Molybdenum Disilicide (MoSi2) Heating Element Easily Replaced Power Supply 220 Volts Single phase AC Supply 415 Volts 3 phase AC Supply

Three Zone High Temp Tube Furnace 1400°C Three-zone split tube furnaces are available in a variety of sizes and temperature ranges. The size of the furnace will determine how many samples can be heated at once, while the temperature range will determine the types of materials that can be heated in the furnace. Application: 1400°C Three Zone Split Tube Furnace Mainly Provides High Temperature Heat Treatment Environment for Industrial, Research Institutes, Factories and Other Industrial Laboratories, And Is Applied to New Materials Such As Metal Materials, Ceramic Materials, Nano Materials, And Semiconductor Materials. Product Specification Type Three Zone Split Type Max Temperature Zone 1 1400℃ Max Temperature Zone 2 1400℃ Max Temperature Zone 3 1400℃ Continue Operating Temp. Zone 1 1350℃ Continue Operating Temp. Zone 1 1350℃ Continue Operating Temp. Zone 1 1350℃ Heating Element Silicon Carbide Solid type Insulation ➢ First layer: 1500℃ ceramic fiber board& Zirconia Fiber Blanket. ➢ Second layer: 1430℃ ceramic fiber board & Zirconia Fiber Blanket. ➢ Third Layer: High Quality Ceramic Fiber Zirconia Grade Thermal Insulation Material To Ensure A Good Uniformity. Temperature Accuracy ±1℃ Thermocouple R type (Pt-Rh to Pt-Rh) with 99.7% purity Alumina tube for Each Zone Temperature Controller • PID automatic control via SCR power control with phase angle fired, current limiting resistor. • 1 programmable x 16 segments for precise control of heating rate, cooling rate and dwell time. • Built in PID Auto-Tune function with overheating & broken thermocouple broken protection for this Split tube Furnace 1400 Type. • Over temperature protection and alarm allows for operation without attendant Electronic Component Autonics / Schneider / L&T Electronics Brands Heating Rate ≤ 15℃/Min (Suggest 10℃/Min for Longer Life Using of Furnace) Safety Protection Overheat And Thermocouple-Break Alarm Certification NSIC REGD, MSME REGD, ISO 9001 – 2015/14001-2015/13485-2016/FDA/GMP/CE CERTIFIED Furnace Shell High Quality GI Sheet With PP Powder Coated Power Supply 220 V, Single Phase AC SUPPLY Warranty ➢ One-year limited warranty for this Split Tube Furnace 1400 type with lifetime support. (Consumable parts such as heating elements and Sensor, Tube, crucibles are not covered by the warranty, please order the replacement at related products) ➢ ATTENTION: Any damages caused by the use of corrosive and acidic gases are not under the coverage of One Year Limited Warranty. Using Attentions ➢ The cooling rate of this Split Tube Furnace1400 type shall also not exceed 10℃/min. ➢ Toxic or explosive gases are not recommended for use with this Split Tube Furnace 1400 Type without necessary safety controls and supervision. ➢ Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence Product Specifications Model HE-STF-(1700/1400p/1200p) Maximum Temp 1700/1400/1200 Degree Working Temp 1600/1350/1150 Degree Temp Accuracy 1 degree Heating Elements Molybdenum Disilicide Heating Element Easily Replaced Power Supply 220 Volts 3 phases AC Supply

Two Zone Split Tube Furnace 1400°C Two-zone split tube furnaces are typically used for applications that require precise temperature control or for applications where the use of different atmospheres is necessary. Some common applications for two-zone split tube furnaces include: Two-zone split tube furnaces are available in a variety of sizes and temperature ranges. The size of the furnace will determine how many samples can be heated at once, while the temperature range will determine the types of materials that can be heated in the furnace. Application: 1400°C Two Zone Split Tube Furnace Mainly Provides High Temperature Heat Treatment Environment for Industrial, Research Institutes, Factories and Other Industrial Laboratories, And Is Applied to New Materials Such As Metal Materials, Ceramic Materials, Nano Materials, And Semiconductor Materials. Product Specification Type Two Zone Split Type Max Temperature Zone 1 1400℃ Max Temperature Zone 2 1400℃ Continue Operating Temp. Zone 1 1350℃ Continue Operating Temp. Zone 2 1350℃ Heating Element Silicon Carbide Solid type Insulation ➢ First layer: 1500℃ ceramic fiber board& Zirconia Fiber Blanket. ➢ Second layer: 1430℃ ceramic fiber board & Zirconia Fiber Blanket. ➢ Third Layer: High Quality Ceramic Fiber Zirconia Grade Thermal Insulation Material To Ensure A Good Uniformity. Temperature Accuracy ±1℃ Thermocouple R type (Pt-Rh to Pt-Rh) with 99.7% purity Alumina tube for Each Zone Temperature Controller • PID automatic control via SCR power control with phase angle fired, current limiting resistor. • 1 programmable x 16 segments for precise control of heating rate, cooling rate and dwell time. • Built in PID Auto-Tune function with overheating & broken thermocouple broken protection for this Split tube Furnace 1400 Type. • Over temperature protection and alarm allows for operation without attendant Electronic Component Autonics / Schneider / L&T Electronics Brands Heating Rate ≤ 15℃/Min (Suggest 10℃/Min for Longer Life Using of Furnace) Safety Protection Overheat And Thermocouple-Break Alarm Certification NSIC REGD, MSME REGD, ISO 9001 – 2015/14001-2015/13485-2016/FDA/GMP/CE CERTIFIED Furnace Shell High Quality GI Sheet With PP Powder Coated Power Supply 220 V, Single Phase AC SUPPLY Warranty ➢ One-year limited warranty for this Split Tube Furnace 1400 type with lifetime support. (Consumable parts such as heating elements and Sensor, Tube, crucibles are not covered by the warranty, please order the replacement at related products) ➢ ATTENTION: Any damages caused by the use of corrosive and acidic gases are not under the coverage of One Year Limited Warranty. Using Attentions ➢ The cooling rate of this Split Tube Furnace1400 type shall also not exceed 10℃/min. ➢ Toxic or explosive gases are not recommended for use with this Split Tube Furnace 1400 Type without necessary safety controls and supervision. ➢ Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence Product Specification Model HE-STF-(1700/1400p/1200p) Maximum Temp 1700/1400/1200 Degree Working Temp 1600/1350/1150 Degree Temp Accuracy 1 degree Heating Elements Silicon Carbide Solid type Power Supply 220 Volts 3 phases AC Supply 415 Volts, 3 Phases AC Supplu

VACUUM OVEN: Make: HE (GMP / ISO 9001 – 2015 / CE Mark) Vacuum Oven is used for drying heat sensitive materials such as powder to extract moisture. As vacuum drying lowers the boiling point; therefore, losses of compounds other than water are minimized. Samples are dried under gentle heating leaving almost no residue. Some applications of vacuum oven include moisture content determination, dry sterilization, purification and out gassing of solids etc. We are vacuum oven manufacturers and suppliers in India. In our factory, these ovens are made in both rectangular and cylindrical (round) shapes with temperature range up to 130°C (400°C optional). Each unit delivers excellent durability for long run. Below are vacuum oven technical specifications. Detailed Description Design: Our vacuum ovens are designed in both rectangular and square chamber and round chamber as required and the capacity is available from 6 liters to 21 liters or more. Construction: A vacuum oven must be made rugged and leak proof; therefore, we make these units thick gauge of stainless-steel sheets, fabricated and jointed with arc welding and nicely designed. Exterior cabinet is usually made of powder coated GI sheet; while the inner chamber is made of stainless steel 304L supported with high density Ceramic wool insulation. We also make GMP vacuum oven having both inner and outer made of stainless steel (316L). Vacuum: The vacuum is achieved better than -750mmHg or 28 psi. Standard vacuum oven units are equipped with dial type analog vacuum gauge of 30psi range. As an option, we also fit imported digital vacuum display and controller for precise accuracy. Vacuum intake and release valves are fitted on either side of unit. Door: The door is also made of thick gauge of steel with toughened glass and durable clamp to close the door. With silicone gasket at chamber, the door ensures leak proof performance Temperature: The temperature range of standard vacuum oven is ambient +5°C to 250°C, which is controlled through microprocessor based PID temperature controller having dual display of set value (SV) and process value (PV). It is supported with PT100 temperature sensor. Options: We offer several optional accessories with our vacuum ovens such as oil free vacuum pump, data logging, digital timer and caster wheels with brake at bottom. We also equip your vacuum oven with highly advanced PLC based HMI controller which not only offers temperature settings but also provides vacuum control, digital vacuum display and data monitoring with USB interface to transfer data into pen drive. Technical Specifications: - Chamber design Round Vacuum range Up to -760 mmHg Temperature range Ambient+5°C to 250°C Temp. Accuracy: ± 1ºC Temperature sensor PT100 Temperature controller Digital PID controller Display of SV & PV Inner chamber Hermetically welded stainless steel 316 sheet External cabinet Powder coated GI sheet Door Solid door with clamp & toughened glass window Gasket High temperature silicon gasket Shelves Removable SS shelves Vacuum fittings Vacuum valve / exhaust valves (Rubber hose) Standard fittings Mains on/off switch Vacuum pump on/off switch Electric socket for vacuum pump Power supply 220 Volts 50Hz With Vacuum Pump-: With Vacuum Pump:- Make: HE (NSIC Regd, MSME Regd, ISO 9001 – 2015/14001-2015/13485-2016/FDA/ GMP/CE Certified) Model Technical Name HE115 N Flow rate 50 Hz 42 L/min 60 Hz 60 Hz 50 L/min Ultimate vacuum Partial Pressure Total Pressure Total Pressure Power Inlet Port Model Technical Name HE115 N Flow rate Model Inner Size= Dia x Depth Power Supply Price HVO 400 x 400 220V/ 10 KW

VACUUM OVEN: Make: HE (GMP / ISO 9001 – 2015 / CE Mark) Vacuum Oven is used for drying heat sensitive materials such as powder to extract moisture. As vacuum drying lowers the boiling point; therefore, losses of compounds other than water are minimized. Samples are dried under gentle heating leaving almost no residue. Some applications of vacuum oven include moisture content determination, dry sterilization, purification and out gassing of solids etc. We are vacuum oven manufacturers and suppliers in India. In our factory, these ovens are made in both rectangular and cylindrical (round) shapes with temperature range up to 130°C (400°C optional). Each unit delivers excellent durability for long run. Below are vacuum oven technical specifications. Detailed Description Design: Our vacuum ovens are designed in both rectangular and square chamber and round chamber as required and the capacity is available from 6 liters to 21 liters or more. Construction: A vacuum oven must be made rugged and leak proof; therefore, we make these units thick gauge of stainless-steel sheets, fabricated and jointed with arc welding and nicely designed. Exterior cabinet is usually made of powder coated GI sheet; while the inner chamber is made of stainless steel 304L supported with high density Ceramic wool insulation. We also make GMP vacuum oven having both inner and outer made of stainless steel (316L). Vacuum: The vacuum is achieved better than -750mmHg or 28 psi. Standard vacuum oven units are equipped with dial type analog vacuum gauge of 30psi range. As an option, we also fit imported digital vacuum display and controller for precise accuracy. Vacuum intake and release valves are fitted on either side of unit. Door: The door is also made of thick gauge of steel with toughened glass and durable clamp to close the door. With silicone gasket at chamber, the door ensures leak proof performance Temperature: The temperature range of standard vacuum oven is ambient +5°C to 250°C, which is controlled through microprocessor based PID temperature controller having dual display of set value (SV) and process value (PV). It is supported with PT100 temperature sensor. Options: We offer several optional accessories with our vacuum ovens such as oil free vacuum pump, data logging, digital timer and caster wheels with brake at bottom. We also equip your vacuum oven with highly advanced PLC based HMI controller which not only offers temperature settings but also provides vacuum control, digital vacuum display and data monitoring with USB interface to transfer data into pen drive. Technical Specifications: - Chamber design Round Vacuum range Up to -760 mmHg Temperature range Ambient+5°C to 250°C Temp. Accuracy: ± 1ºC Temperature sensor PT100 Temperature controller Digital PID controller Display of SV & PV Inner chamber Hermetically welded stainless steel 316 sheet External cabinet Powder coated GI sheet Door Solid door with clamp & toughened glass window Gasket High temperature silicon gasket Shelves Removable SS shelves Vacuum fittings Vacuum valve / exhaust valves (Rubber hose) Standard fittings Mains on/off switch Vacuum pump on/off switch Electric socket for vacuum pump Power supply 220 Volts 50Hz With Vacuum Pump-: With Vacuum Pump:- Make: HE (NSIC Regd, MSME Regd, ISO 9001 – 2015/14001-2015/13485-2016/FDA/ GMP/CE Certified) Model Technical Name HE115 N Flow rate 50 Hz 42 L/min 60 Hz 60 Hz 50 L/min Ultimate vacuum Partial Pressure Total Pressure Total Pressure Power Inlet Port Model Technical Name HE115 N Flow rate Model Inner Size= Dia x Depth Power Supply Size-: HVO 300mm x 300mm 220V/ 8 KW

VACUUM OVEN: Make: HE (GMP / ISO 9001 – 2015 / CE Mark) Vacuum Oven is used for drying heat sensitive materials such as powder to extract moisture. As vacuum drying lowers the boiling point; therefore, losses of compounds other than water are minimized. Samples are dried under gentle heating leaving almost no residue. Some applications of vacuum oven include moisture content determination, dry sterilization, purification and out gassing of solids etc. We are vacuum oven manufacturers and suppliers in India. In our factory, these ovens are made in both rectangular and cylindrical (round) shapes with temperature range up to 130°C (400°C optional). Each unit delivers excellent durability for long run. Below are vacuum oven technical specifications. Detailed Description Design: Our vacuum ovens are designed in both rectangular and square chamber and round chamber as required and the capacity is available from 6 liters to 21 liters or more. Construction: A vacuum oven must be made rugged and leak proof; therefore, we make these units thick gauge of stainless-steel sheets, fabricated and jointed with arc welding and nicely designed. Exterior cabinet is usually made of powder coated GI sheet; while the inner chamber is made of stainless steel 304L supported with high density Ceramic wool insulation. We also make GMP vacuum oven having both inner and outer made of stainless steel (316L). Vacuum: The vacuum is achieved better than -750mmHg or 28 psi. Standard vacuum oven units are equipped with dial type analog vacuum gauge of 30psi range. As an option, we also fit imported digital vacuum display and controller for precise accuracy. Vacuum intake and release valves are fitted on either side of unit. Door: The door is also made of thick gauge of steel with toughened glass and durable clamp to close the door. With silicone gasket at chamber, the door ensures leak proof performance Temperature: The temperature range of standard vacuum oven is ambient +5°C to 250°C, which is controlled through microprocessor based PID temperature controller having dual display of set value (SV) and process value (PV). It is supported with PT100 temperature sensor. Options: We offer several optional accessories with our vacuum ovens such as oil free vacuum pump, data logging, digital timer and caster wheels with brake at bottom. We also equip your vacuum oven with highly advanced PLC based HMI controller which not only offers temperature settings but also provides vacuum control, digital vacuum display and data monitoring with USB interface to transfer data into pen drive. Technical Specifications: - Chamber design Round Vacuum range Up to -760 mmHg Temperature range Ambient+5°C to 250°C Temp. Accuracy: ± 1ºC Temperature sensor PT100 Temperature controller Digital PID controller Display of SV & PV Inner chamber Hermetically welded stainless steel 316 sheet External cabinet Powder coated GI sheet Door Solid door with clamp & toughened glass window Gasket High temperature silicon gasket Shelves Removable SS shelves Vacuum fittings Vacuum valve / exhaust valves (Rubber hose) Standard fittings Mains on/off switch Vacuum pump on/off switch Electric socket for vacuum pump Power supply 220 Volts 50Hz With Vacuum Pump-: With Vacuum Pump:- Make: HE (NSIC Regd, MSME Regd, ISO 9001 – 2015/14001-2015/13485-2016/FDA/ GMP/CE Certified) Model Technical Name HE115 N Flow rate 50 Hz 42 L/min 60 Hz 60 Hz 50 L/min Ultimate vacuum Partial Pressure Total Pressure Total Pressure Power Inlet Port Model Technical Name HE115 N Flow rate Model Inner Size= Dia x Depth Power Supply Size-: HVO 350mm x 350mm 220V/ 7 KW

VACUUM OVEN: Make: HE (GMP / ISO 9001 – 2015 / CE Mark) Vacuum Oven is used for drying heat sensitive materials such as powder to extract moisture. As vacuum drying lowers the boiling point; therefore, losses of compounds other than water are minimized. Samples are dried under gentle heating leaving almost no residue. Some applications of vacuum oven include moisture content determination, dry sterilization, purification and out gassing of solids etc. We are vacuum oven manufacturers and suppliers in India. In our factory, these ovens are made in both rectangular and cylindrical (round) shapes with temperature range up to 130°C (400°C optional). Each unit delivers excellent durability for long run. Below are vacuum oven technical specifications. Detailed Description Design: Our vacuum ovens are designed in both rectangular and square chamber and round chamber as required and the capacity is available from 6 liters to 21 liters or more. Construction: A vacuum oven must be made rugged and leak proof; therefore, we make these units thick gauge of stainless-steel sheets, fabricated and jointed with arc welding and nicely designed. Exterior cabinet is usually made of powder coated GI sheet; while the inner chamber is made of stainless steel 304L supported with high density Ceramic wool insulation. We also make GMP vacuum oven having both inner and outer made of stainless steel (316L). Vacuum: The vacuum is achieved better than -750mmHg or 28 psi. Standard vacuum oven units are equipped with dial type analog vacuum gauge of 30psi range. As an option, we also fit imported digital vacuum display and controller for precise accuracy. Vacuum intake and release valves are fitted on either side of unit. Door: The door is also made of thick gauge of steel with toughened glass and durable clamp to close the door. With silicone gasket at chamber, the door ensures leak proof performance Temperature: The temperature range of standard vacuum oven is ambient +5°C to 250°C, which is controlled through microprocessor based PID temperature controller having dual display of set value (SV) and process value (PV). It is supported with PT100 temperature sensor. Options: We offer several optional accessories with our vacuum ovens such as oil free vacuum pump, data logging, digital timer and caster wheels with brake at bottom. We also equip your vacuum oven with highly advanced PLC based HMI controller which not only offers temperature settings but also provides vacuum control, digital vacuum display and data monitoring with USB interface to transfer data into pen drive. Technical Specifications: - Chamber design Round Vacuum range Up to -760 mmHg Temperature range Ambient+5°C to 250°C Temp. Accuracy: ± 1ºC Temperature sensor PT100 Temperature controller Digital PID controller Display of SV & PV Inner chamber Hermetically welded stainless steel 316 sheet External cabinet Powder coated GI sheet Door Solid door with clamp & toughened glass window Gasket High temperature silicon gasket Shelves Removable SS shelves Vacuum fittings Vacuum valve / exhaust valves (Rubber hose) Standard fittings Mains on/off switch Vacuum pump on/off switch Electric socket for vacuum pump Power supply 220 Volts 50Hz With Vacuum Pump-: With Vacuum Pump:- Make: HE (NSIC Regd, MSME Regd, ISO 9001 – 2015/14001-2015/13485-2016/FDA/ GMP/CE Certified) Model Technical Name HE115 N Flow rate 50 Hz 42 L/min 60 Hz 60 Hz 50 L/min Ultimate vacuum Partial Pressure Total Pressure Total Pressure Power Inlet Port Model Technical Name HE115 N Flow rate Model Inner Size= Dia x Depth Power Supply Size-: HVO 250mm x 250mm 220V/ 7 KW

 Temperature Range: The standard temperature range of a laboratory hot air oven is ambient+5°C to 250°C.  Temperature Controller: We always equip our hot air oven with imported and branded PID temperature controllers that feature auto-tuning and display both set value (SV) and process value (PV). It is also responsible for accuracy of temperature during the entire cycle. RTD PT100 sensor has sensitivity of ± 1°C or better.  Heating Element: Sheathed Tubular air heaters are considered best for hot air ovens; these elements are ISI mark and from reputed brands in the market and offer fast heat up using minimum energy consumption.  Air Circulation: In order to achieve better uniformity across the chamber, air circulation is mandatory; therefore, we use only branded motor and blower assembly for this purpose. It is fitted at back side of the chamber as per convenient.  Construction: Rugged construction is prime requisite of any hot air oven; therefore, we use only stainless steel (304) of thick gauge that are nicely jointed through arc welding. External cabinet is usually made of powder coated GI sheet and for GMP models stainless sheets are used.  Customization: We understand the requirement of customization; therefore, we offer number of optional features and accessories with our hot air oven such as toughened glass viewing window, perforated stainless steel shelves, 21CFR based controller, data logging and monitoring device, programmable soak timer, color touch screen controller etc. TECHNICAL SPECIFICATIONS :- Temperature range Ambient +5°C to 250°C Temperature accuracy ±1°C or better Temperature sensor RTD PT100 Temperature controller  PID automatic control via SSR power control with phase angle fired, current limiting resistor.  1 programmable x 16 segments for precise control of heating rate, cooling rate and dwell time.  Built in PID Auto-Tune function with overheating & broken thermocouple broken protection for this Split Tube Furnace 1200 type.  Over temperature protection and alarm allows for operation without attendant Construction Double walled Inner chamber Stainless steel 304 Exterior Powder coated GI sheet Insulation Ceramic Wool Shelves Chrome plated wire mesh cable trays (removable) Door Insulated solid door with spring latch Door gasket Silicone Gasket Air circulation Motor driven blower assembly Certification NSIC REGD, ISO 9001 – 2015/14001-2015/13485-2016/FDA/ GMP/CE CERTIFIED Safety Over temperature thermostat Power supply 220/230 Volts / 1 Phase Supply
